Description

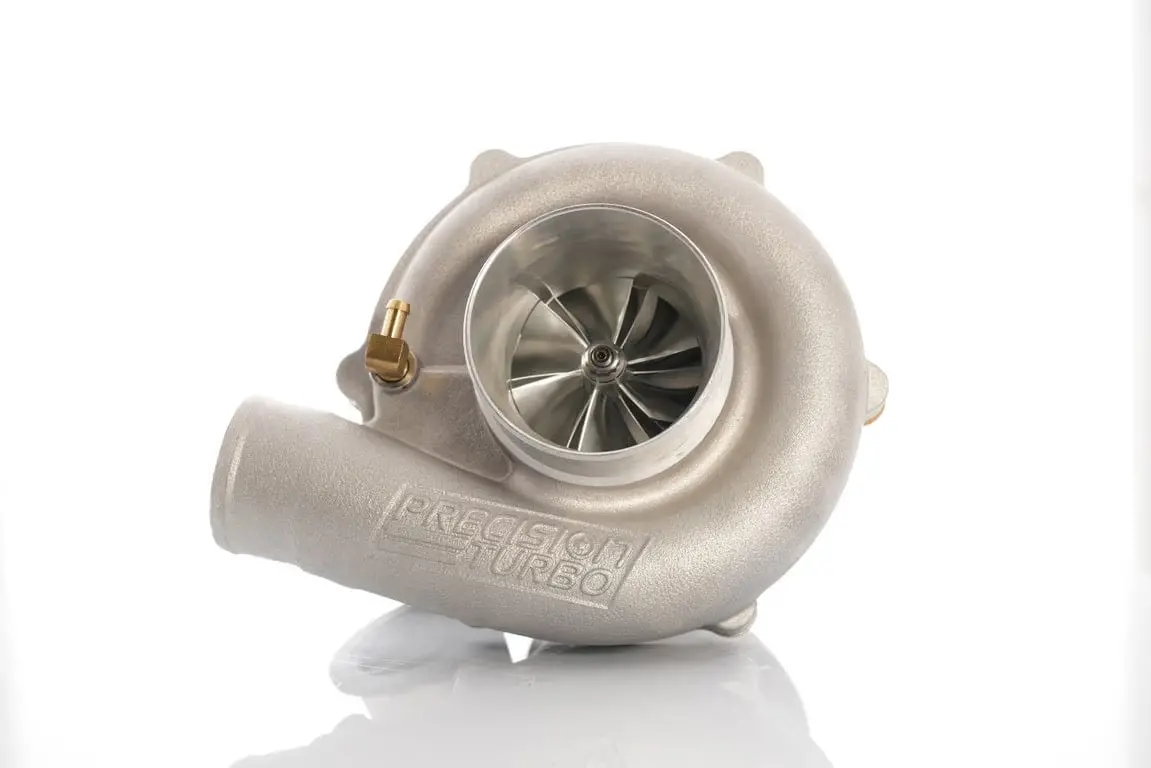

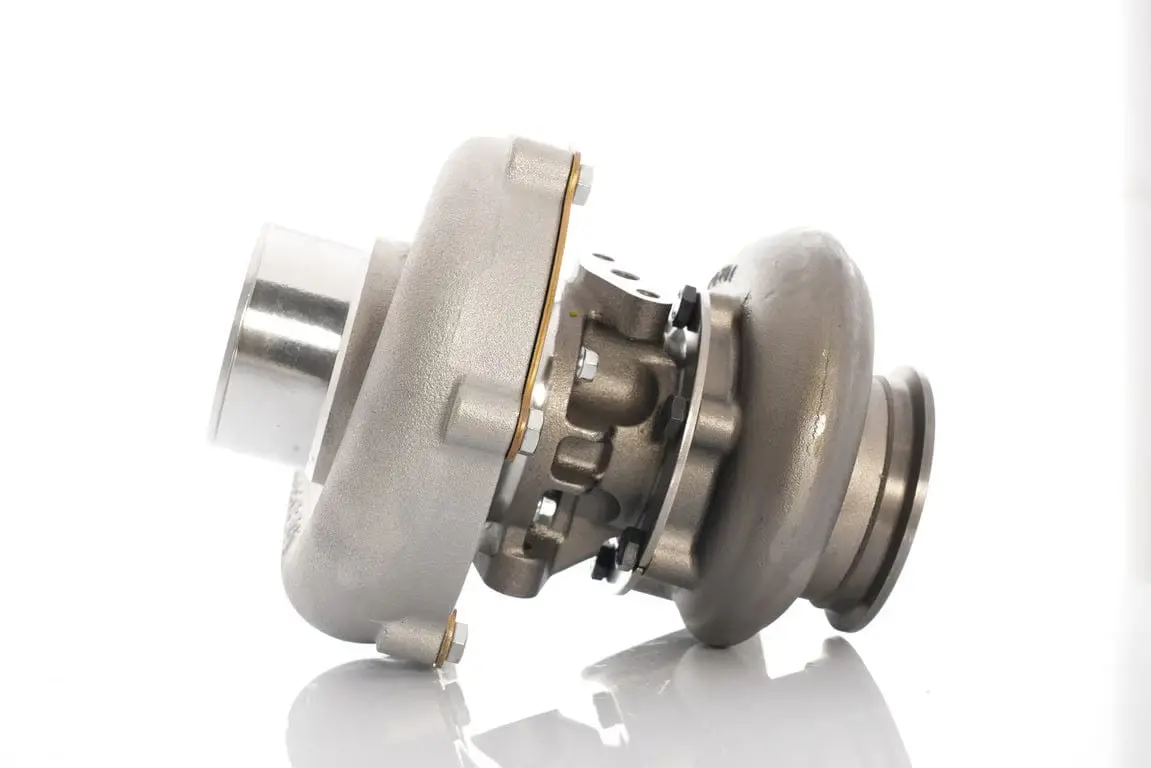

PTE’s PT6266 Turbocharger features the following: HP Rating: 735 Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging Higher efficiency and faster transient response for maximum power and performance 62mm inducer compressor wheel Compressor cover options: – “E” compressor cover 3.0″ inlet/2.0″ outlet – “Ported S” compressor cover 4.0″ inlet/2.5″ outlet Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel Turbine housing options: cast 310 stainless steel THV5S / 1.05 A/R – T3 .63 or .82 A/R with 4 bolt (2.5″) discharge – T3 .63 A/R with 5 bolt discharge (with or without wastegate hole) – T3 .63 or .82 A/R with 3″ OD (outer diameter) V-Band discharge – V-Band inlet .82 A/R with V-Band discharge – T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8″ OD (outer diameter) V-Band discharge – T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8″ OD (outer diameter) V-Band discharge – Buick .63 or .85 A/R – K26 .82 A/R Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA) Precision customers have a history of setting records and getting noticed. They don’t sit in the stands watching the action, they’re the ones making it happen. Innovation is a collaborative process, and we focus our efforts on you. Get involved and be a part of the action today with PTE.
