Description

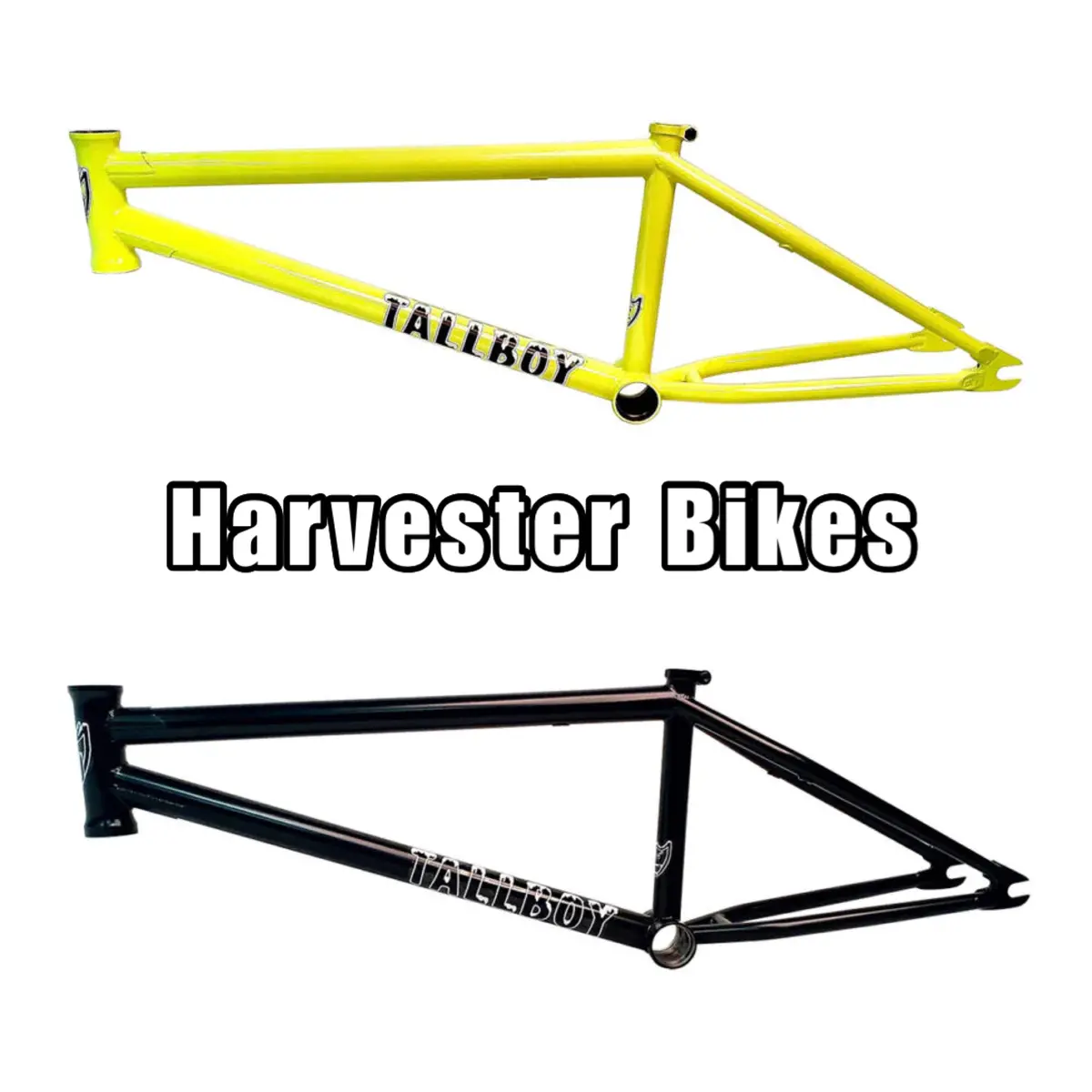

Charlie Crumlish’s signature frame features a 1/2″ taller head tube to take up the space headset spacers would use.
| TOP TUBE LENGTHS: | 20.75″, 21″,21.25″,21.5″ |
| REAR END LENGTH: | 13.25″ |
| HEAD TUBE ANGLE: | 75.25° |
| HEAD TUBE STYLE: | 5.150″ Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE: | 71° |
| SEAT CLAMP: | Integrated |
| SEAT POST SIZE: | 1″ (25.4mm) |
| BB HEIGHT: | 11.8″ |
| BB STYLE: | Mid |
| STANDOVER HEIGHT: | 9.2″ |
| BRAKE MOUNTS: | 5 Degree Angled 990 Mounts (Thread-On 990 kit sold separately) |
| DROPOUTS: | 14mm Slot, 4Q-Baked |
| GYRO TABS: | None |
| WEIGHT: | 20.75″: 4.65lbs/2.11kg 21″: 4.675lbs/2.12kg 21.25″: 4.678lbs/2.12kg 21.5″: 5.1lbs/2.31kg |
| TUBESET: | Butted ThermalX |
